K26E6 Online Infrared Thermal Imaging Thermometer

2021/03/30 Product Center Metallurgy Machine Vision Scientific Research 2737

Product Profile

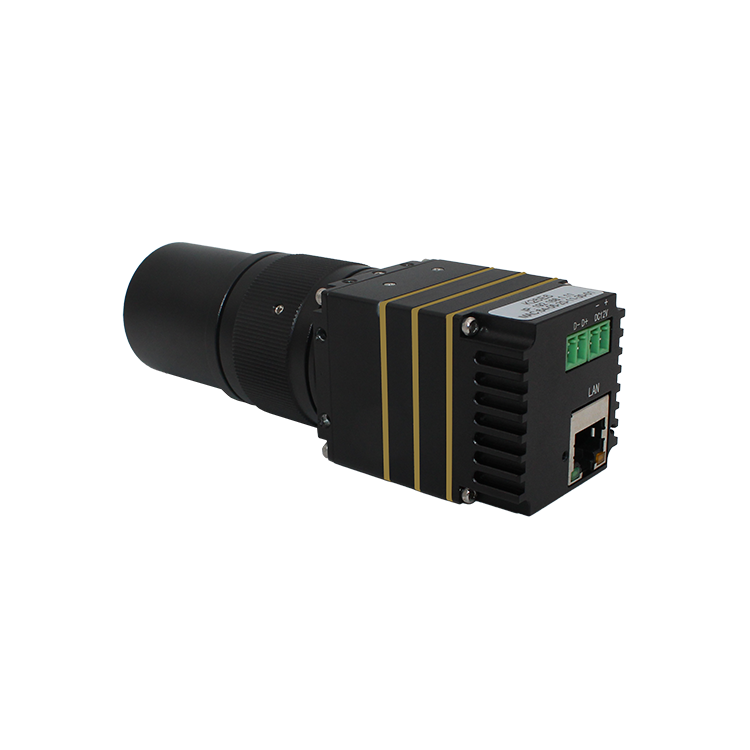

K26E6 online infrared thermal imaging thermometer adopts 17 μm uncooled infrared focal plane detector, high-performance infrared lens and signal processing circuit, and embedded image processing algorithm, with small size, low power consumption, fast start-up, excellent imaging quality, accurate temperature measurement and other characteristics.

The device selection of k26e6 on-line infrared thermal imaging thermometer fully considers the requirements of high and low temperature working performance to ensure that the whole machine has excellent environmental adaptability.

Functional Characteristics

Equipped with wide-angle fish eye lens, it can be used in a wide range of ambient temperature;
With high frame rate design, fast-moving targets can be observed;
Adopt self-developed temperature measurement correction algorithm to realize accurate temperature measurement;
Output full stream lossless 16bit temperature data, and provide client software and SDK development kit.

Application Field

Iron And Steel Metallurgy, Petroleum And Petrochemical, Rail Transit, Circuit Detection

Scientific Research, Power Grid, Machine Vision, Customized Development

系列详情 Specifications Common Problem

K26系列详情

IR Detector
Detector Type	Uncooled Focal Plane Microbolometer
Resolution	640×480
Pixel Size	17μm
Spectral Range	8～14μm
NETD	≤50mk@30℃
Frame Rate	≤ 50Hz (configurable)
Image Processing And Display
Start-up Time	≤15S
Palette	A variety of color palettes, including white heat, black heat, iron red, rainbow, etc
Contrast And Brightness	Automatic / Manual
Data Format	16bit Temperature Data (full Code Stream)
Temperature Measurement Analysis
Temperature Measurement Accuracy	±2℃ or ±2%
Measuring Range	Normal Temperature Range: -20 ℃ ~ 200 ℃ Medium Temperature Range: 50 ℃ ~ 800 ℃ High Temperature Range: 50 ℃ ~ 1600 ℃
Electrical Characteristics
Data Interface	RJ45
Web Standard	100M Network / Gigabit Network (100M network needs to reduce the frame rate)
Protocol Support	UDP
Power Interface	2EDGKD-3.81mm/2P
Input Power Supply Voltage	5V～12VDC
Communication Interface	UART@RS485 (anti control platform and camera)
Steady State Power Consumption	<2.5W
Reverse Connection Protection	Have
Overvoltage And Undervoltage Protection	Have
Environmental Parameters
Operation Temperature	-40 ℃ ~ 60 ℃ (-20 ℃ ~ 60 ℃ to ensure temperature measurement accuracy
Storage Temperature	-45℃～70℃
Resistance To Temperature Shock	5℃/min（-40℃～60℃）
Vibration Resistance	4.3g, 2 hours for each axis of x, y and z axes
Shock Resistance	Acceleration 30g, Half Sine Wave, Pulse Width 6ms, Impact 3 Times In The Direction Of Installation And Use
Humidity	≤ 95% (non condensing)
Camera Lens
Focal Length	4.8mm(F#1.0)
Focus Mode	Manual
Field Of View	97.2°×80.7°(horizontal field angle × Vertical field angle)
Spatial Resolution	3.54mrad
Physical Characteristics
Overall Dimension	40mm×40mm×96.8mm
Weight	<260g
Mounting Hole	Bracket fixing, four Φ 6.5 through holes
Client
Real Time Temperature Display	Support
Multiple Temperature Measuring Objects	Support
Caution Function	Support
Video Recording / Photographing / Playback	Support
SDK development kit
Operating Environment	Support win32、x64、Linux(x86、ARM)

Abnormal operation of upper computer

Possible causes:

The necessary runtime library (EXE or credist_vs2013.x86.exe under the installation software directory) is missing
The software does not support the operating system used (replace the operating system or computer)

The software cannot detect the camera IP address

Possible causes:

The computer firewall blocks network transmission (turn off the firewall, or add the software to the firewall white list)

The software detects the IP address of the camera, but there is no image output or image jam

Possible causes:

Insufficient bandwidth (check whether the camera network card is gigabit network. It is recommended to use gigabit network. The 100m network camera will automatically reduce the frame rate)
Network card configuration problem (for 100Hz or 200Hz high frame rate cameras, you need to turn on the giant frame function of the network card)
The computer local IP is not in the same network segment as the camera IP (modify the computer local link IP address, which is in the same network segment as the camera, and is not the same as the camera
The software does not support the operating system used (replace the operating system or computer)

Large temperature measurement deviation

Possible causes:

The use environment is beyond the scope of product use (use appropriate cooling measures)
Temperature section mismatch (select the appropriate temperature section for temperature measurement)

The image flickers or there is a splash screen phenomenon

Possible causes:

The power supply voltage or power does not meet the requirements of the camera (replace the power supply)
Camera hardware failure (return to factory for maintenance)
