BS2Z25KN Dual Light Explosion-proof On-line Temperature Measurement And Monitoring Systemsystem

2021/04/27 Product Center Metallurgy Power Grid 3322

Product Profile

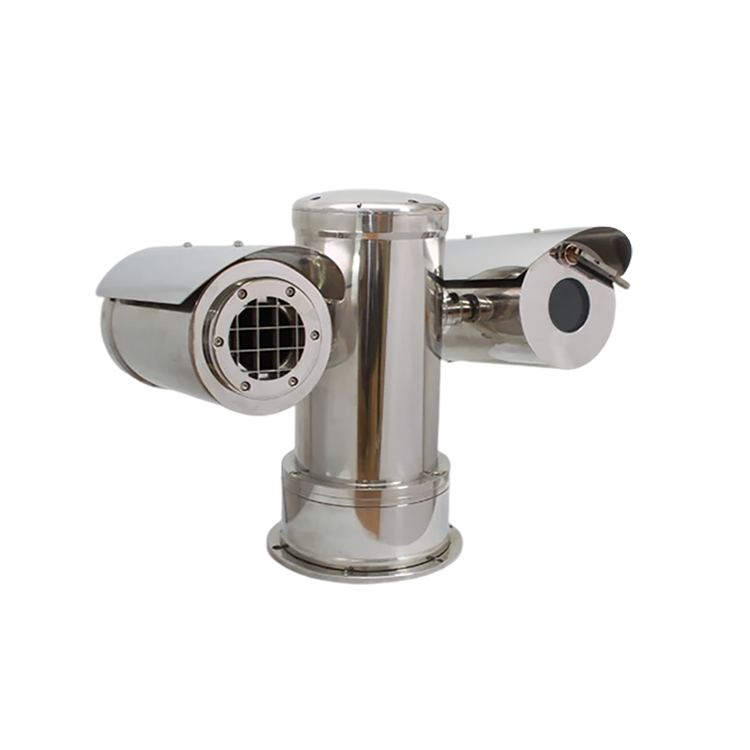

BS2Z25KN series (dual light explosion-proof) online temperature measurement and monitoring system integrates visible light, infrared thermal imaging, high-performance turntable and intelligent algorithm. The products are suitable for dangerous and harsh environments with a variety of combustible gases or dust.

Functional Characteristics

Highly integrated explosion-proof pan tilt and explosion-proof decoder, small size and light weight;
It is made of stainless steel, and the windows are made of toughened glass and germanium glass coated with waterproof film on both sides, which has good shielding and heat dissipation effect;
The built-in infrared thermal imaging thermometer has accurate temperature measurement, clear image, and visible light supports HD transmission;
Stable operation, adapt to harsh environment, support automatic cruise mode and automatic warning;
The single network cable transmits infrared temperature and visible light images at the same time, supports various NVRs, and has low network bandwidth occupation and flexible networking;
Various alarm, safety and equipment operation status records;
System software is provided to facilitate system integration;
Complete and rich SDK development packages support users' rapid secondary development.

Application Field

Hazardous Chemicals Monitoring, Plant High Temperature Monitoring, Smoke Detection, Garbage Pit Temperature Monitoring

Specifications Common Problem

BS2Z25KN(double Light Explosion-proof) Technical Parameters

Infrared Movement Index
Detector Type	Uncooled Focal Plane Microbolometer
Pixel	384×288/640×480
Pixel Size	17μm
Spectral Range	8~14μm
Thermal Sensitivity	≤50mk@30℃
Frame Rate	25Hz
Focal Length	8mm, 13mm, 19mm, 25mm, 35mm optional
Measuring Range	-20℃～200℃/50℃～800℃/50℃～1600℃
Temperature Measurement Accuracy	±2℃ or ±2%
Visible Light Machine Core
Sensor Type	1/2.8" Progressive Scan CMOS
Resolving Power	1920×1080
Focal Length	4.8~120mm
Aperture Value	F1.6-F3.5
Minimum illumination	彩色：0.05Lux @ (F1.6，AGC ON)
Horizontal Field Angle	57.6-2.5 degrees (wide-angle telescopic)
Close Range	100mm-1500mm (wide-angle telescopic)
Pan Tilt Shield
Pan Tilt Protection	explosion-proof
Shield Protection	explosion-proof
Explosion Proof Grade	Ex d IIC T6 Gb/Ex tD A20 IP68 T80℃
Function
Palette	A variety of color palettes, including white heat, black heat, iron red, rainbow, etc
Other	With nonuniformity correction function, automatic correction when powered on
Client Software	Neutral client software is provided, through which various functional parameters of the thermal imager can be set remotely, such as palette, alarm threshold and image parameter configuration.
Protocol Support
Protocol Support	TCP/IP,HTTP,RTP,RTSP,NTP,UPnP,ONVIF,UDP
Environmental Requirements
Operation Temperature	-40℃～60℃
Storage Temperature	-45℃～70℃
Resistance To Temperature Shock	5℃/min(-40℃～60℃)
Physical Characteristics And Others
Power Supply	AC220V
Power Dissipation	≤100W
Communication Interface	RJ45/RS485
Overall Dimension	498mm×295mm×378mm（L×W×H）
Weight	≤45kg

Abnormal operation of upper computer

Possible causes:

The necessary runtime library (EXE or credist_vs2013.x86.exe under the installation software directory) is missing
The software does not support the operating system used (replace the operating system or computer)

The software cannot detect the camera IP address

Possible causes:

The computer firewall blocks network transmission (turn off the firewall, or add the software to the firewall white list)

The software detects the IP address of the camera, but there is no image output or image jam

Possible causes:

Insufficient bandwidth (check whether the camera network card is gigabit network. It is recommended to use gigabit network. The 100m network camera will automatically reduce the frame rate)
Network card configuration problem (for 100Hz or 200Hz high frame rate cameras, you need to turn on the giant frame function of the network card)
The computer local IP is not in the same network segment as the camera IP (modify the computer local link IP address, which is in the same network segment as the camera, and is not the same as the camera
The software does not support the operating system used (replace the operating system or computer)

Large temperature measurement deviation

Possible causes:

The use environment is beyond the scope of product use (use appropriate cooling measures)
Temperature section mismatch (select the appropriate temperature section for temperature measurement)

The image flickers or there is a splash screen phenomenon

Possible causes:

The power supply voltage or power does not meet the requirements of the camera (replace the power supply)
Camera hardware failure (return to factory for maintenance)
