S300B 在线式双光谱红外热成像测温系统-华景康光电科技官网

Product Profile

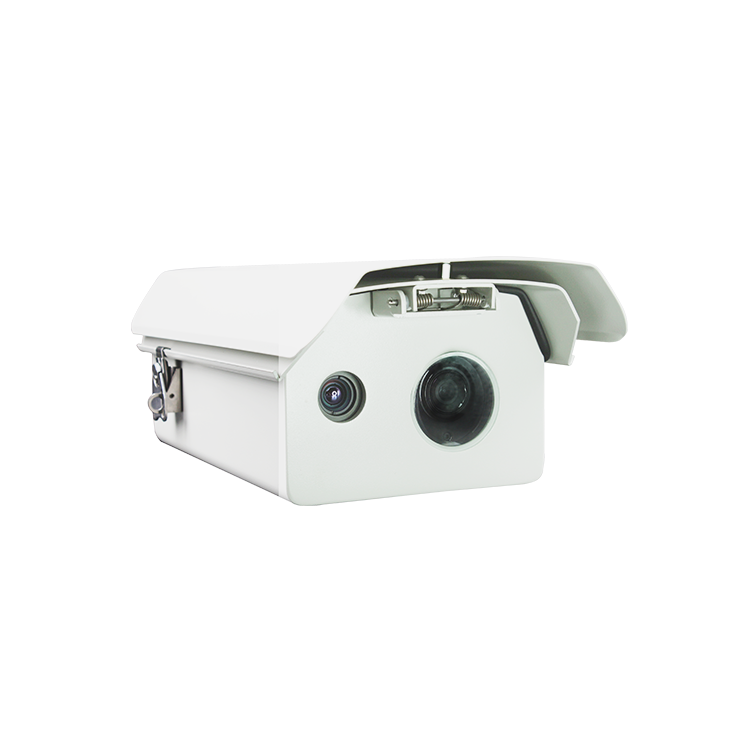

S300B on-line dual spectrum infrared thermal imaging temperature measurement system is an integrated on-line temperature measurement and monitoring equipment, which is composed of a tripod or PTZ (optional), a 4million 1/1.8 "CMOS ICR day and night network HD all-in-one machine, 17 μm uncooled infrared thermal imager. Embedded with advanced image processing algorithm, it has the characteristics of low power consumption, fast startup, excellent imaging quality, accurate temperature measurement and so on.

Functional Characteristics

It has strong smoke penetration performance and can be used in a wide range of ambient temperatures;

With high frame rate design, fast-moving targets can be observed;

Adopt self-developed temperature measurement correction algorithm to realize accurate temperature measurement;

Single network cable can complete infrared / visible dual band data transmission, and monitoring and temperature measurement are carried out at the same time. It is widely used in security monitoring, power online monitoring and other fields.

Specifications Common Problem

S300B Technical Parameter

IR Detector
Detector Type	Uncooled Focal Plane Microbolometer
Resolution	384×288
Pixel Size	17μm
Spectral Range	8～14μm
NETD	≤50mk@30℃
Frame Rate	≤ 50Hz (configurable)
Image Processing And Display
Start-up Time	≤15S
Palette	A variety of color palettes, including white heat, black heat, iron red, rainbow, etc
Contrast And Brightness	Automatic / Manual
Data Format	16bit Temperature Data (full Code Stream)
Temperature Measurement Analysis
Temperature Measurement Accuracy	±2℃ or ±2%
Measuring Range	Normal Temperature Range: -20 ℃ ~ 200 ℃ Medium Temperature Range: 50 ℃ ~ 800 ℃ High Temperature Range: 50 ℃ ~ 1600 ℃
Electrical Characteristics
Data Interface	RJ45
Web Standard	100M Network / Gigabit Network (100M network needs to reduce the frame rate)
Protocol Support	UDP
Power Interface	2EDGKD-3.81mm/2P
Input Power Supply Voltage	5V～12VDC
Communication Interface	UART@RS485 (anti control platform and camera)
Steady State Power Consumption	<2.2W
Environmental Parameters
Operation Temperature	-40 ℃ ~ 60 ℃ (-20 ℃ ~ 60 ℃ to ensure temperature measurement accuracy
Storage Temperature	-45℃～70℃
Camera Lens
Focal Length	8mm(F#1.0)
Focus Mode	Manual
Field Of View	44.3° × 34.0 ° (horizontal field angle × Vertical field angle)
Spatial Resolution	2.125mrad
Client
Real Time Temperature Display	Support
Multiple Temperature Measuring Objects	Support
Alarm Analysis	Support
Video Recording / Photographing / Playback	Support
SDK development kit
Operating Environment	Support win32、x64、Linux(x86、ARM)

Key Technical Parameters Of Visible Light:

IR Detector
Sensor Type	Progressive Scan CMOS
Resolving Power	1920×1080(max. 2560 × 1440）
Pixel Size	1/1.8"
Aperture Value	F1.6
Electronic Shutter	1 second to 1/100000 second
Frame Rate	25Hz
Focal Length	6mm~9mm
Horizontal Field Angle	Horizontal field angle 50 ° ~33 °
Video Compression Standard	H.265/H.264 / MJPEG（Code rate 32 Kbps~16Mbps）
Image Quality Adjustment	Support backlight compensation, strong light suppression, electronic anti shake and fog penetration
Electrical Characteristics
Data Interface	RJ45
Web Standard	100M network
Power Interface	Dc5.5*2.1mm socket
Input Power Supply Voltage	DC：12V±25%
Steady State Power Consumption	<6W
Environmental Parameters
Operation Temperature	-30℃~60℃
Humidity	≤ 95% (non condensing)
Physical Characteristics
Overall Dimension	93.9mm×93.5mm×194.1mm
Weight	770g

Key Technical Parameters Of Ptz (optional):

Electrical Characteristics
Power Supply	AC24V±20% ,50/60Hz
Power	≤80W
Rotation Angle	Horizontal 0 ° ~360 ° (continuous rotation), vertical -85 ° ~20 °
Rotation Speed	Horizontal 0 ° ~ 9 ° /s, vertical 0 ° ~ 5 ° /s
Maximum Bearing Capacity	7Kg
Communication Mode	RS485
Communication Protocol	Pelco-D
Baud Rate	2,400/4,800/9,600/19,200 bps
Preset Position	80 can be set
Cruise control	1 strip
Cruise control	Each cruise route can add 10 cruise points
Lens Preset	Have
Auxiliary Switch	2 groups (normally closed)(DC30V/2A)
Physical Characteristics
Operating Environment Temperature And Humidity	-35℃~+65℃,humidity＜90%RH
Degree of Protection	IP66
Bearing Mode	Top Load
Weight	4.8kg
Overall Dimension	188.5mm×165mm×278.5mm
Installation method	4 outer hexagon screws M8X25

Key Technical Parameters Of The Whole Machine (excluding Pan Tilt):

Electrical Characteristics
Power Interface	Dc5.5*2.1mm socket
Input Power Supply Voltage	DC12V
Steady State Power Consumption	≤18W
Data Interface	RJ45
Web Standard	GigE
Protocol Support	UDP
Communication Interface	RJ45
Communication Protocol	UART@RS485 (anti control platform and camera)
Physical Characteristics
Working Ambient Temperature	-30 ℃ ~+ 60 ℃ (-20 ℃ ~ 60 ℃ to ensure temperature measurement accuracy
Humidity Of Working Environment	≤ 95% (non condensing)
Weight	8kg
Overall Dimension	388mm170mm135mm
Installation method	2-M6

Abnormal operation of upper computer

Possible causes:

The necessary runtime library (EXE or credist_vs2013.x86.exe under the installation software directory) is missing
The software does not support the operating system used (replace the operating system or computer)

The software cannot detect the camera IP address

Possible causes:

The computer firewall blocks network transmission (turn off the firewall, or add the software to the firewall white list)

The software detects the IP address of the camera, but there is no image output or image jam

Possible causes:

Insufficient bandwidth (check whether the camera network card is gigabit network. It is recommended to use gigabit network. The 100m network camera will automatically reduce the frame rate)
Network card configuration problem (for 100Hz or 200Hz high frame rate cameras, you need to turn on the giant frame function of the network card)
The computer local IP is not in the same network segment as the camera IP (modify the computer local link IP address, which is in the same network segment as the camera, and is not the same as the camera
The software does not support the operating system used (replace the operating system or computer)

Large temperature measurement deviation

Possible causes:

The use environment is beyond the scope of product use (use appropriate cooling measures)
The use environment is beyond the scope of product use (use appropriate cooling measures)

The image flickers or there is a splash screen phenomenon

Possible causes:

The power supply voltage or power does not meet the requirements of the camera (replace the power supply)
Camera hardware failure (return to factory for maintenance)
