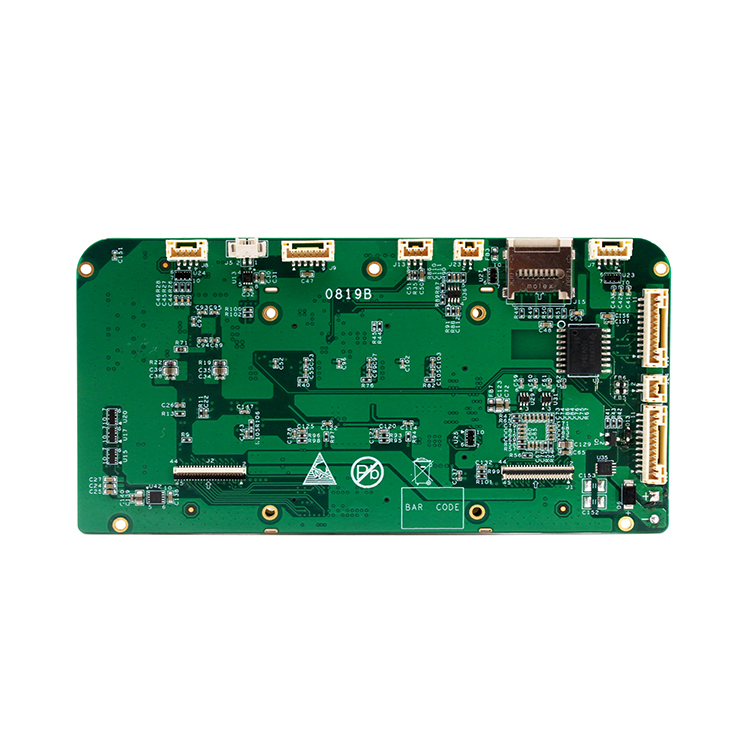

| Main Chip Configuration |
| FPGA | XC7Z015 |
| DDR | 1GB(512MByte × 2) |
| FLASH | 32MByte QSPI FLASH |
| Image Processing And Display |
| Analog Video Output | CVBS (PAL) |
| Digital Video Output | 1920×1080@OLED × 2 |
| Electronic Magnification | 1x/2x/4x |
| Optical Zoom | White Light Camera Support |
| Palette | Infrared Camera Supports Four Color Palettes, Including White Hot, Black Hot, Iron Red And Rainbow |
| Contrast And Brightness | Manual |
| Focus Mode | Electric |
| Electrical Characteristics |
| Power Interface | 796638-2 |
| Input Power Supply Voltage | 12～40VDC |
| White Light Camera Interface 1 | 541324062 (BT1120 + UART@TTL3.3V) |
| White Light Camera Interface 2 | BM15B-GHS-TBT（Motor control） |
| White Light Camera Interface 3 | FPC1.25MM-2P(filter control) |
| Infrared Camera Interface | BM14B-GHS-TBT(BT656 + UART@TTL3.3V) |
| Oled Display Interface | 503566-4500 × 2 |
| Magnetic Compass Interface | BM04B-GHS-TBT(UART@TTL3.3V) |
| Beidou Interface | BM06B-GHS-TBT(UART@TTL3.3V) |
| Laser Interface | BM06B-GHS-TBT(UART@TTL3.3V) |
| Analog Video Interface | BM06B-SRSS-TB |
| Control Key Interface | BM04B-GHS-TBT × 2 |
| Switch Button Interface | BM02B-GHS-TBT |
| Proximity Switch Interface | BM03B-GHS-TBT |
| Synchronization Module Interface | BM11B-GHS-TBT |
| Ethernet Interface | BM11B-GHS-TBT |
| SD Card Interface | 500901-0801 |
| Steady State Power Consumption | <1.8W |
| Environmental Parameters |
| Operation Temperature | -40℃～60℃ |
| Storage Temperature | -45℃～70℃ |
| Resistance To Temperature Shock | 5℃/min(-40℃～60℃) |
| Humidity | ≤ 95% (non condensing) |
| Vibration Resistance | 4.3g, 2 hours for each axis of x, y and z axes |
| Shock Resistance | Acceleration 30g, Half Sine Wave, Pulse Width 6ms, Impact 3 Times In The Direction Of Installation And Use |
| Physical Characteristics |
| Overall Dimension | 125mm×65mm×10mm |
| Weight | <62g |
