N23E8在线式红外热成像测温仪（已停产）

2021/03/31 Product Center Machine Vision Power Grid Scientific Research 2805

Product Profile

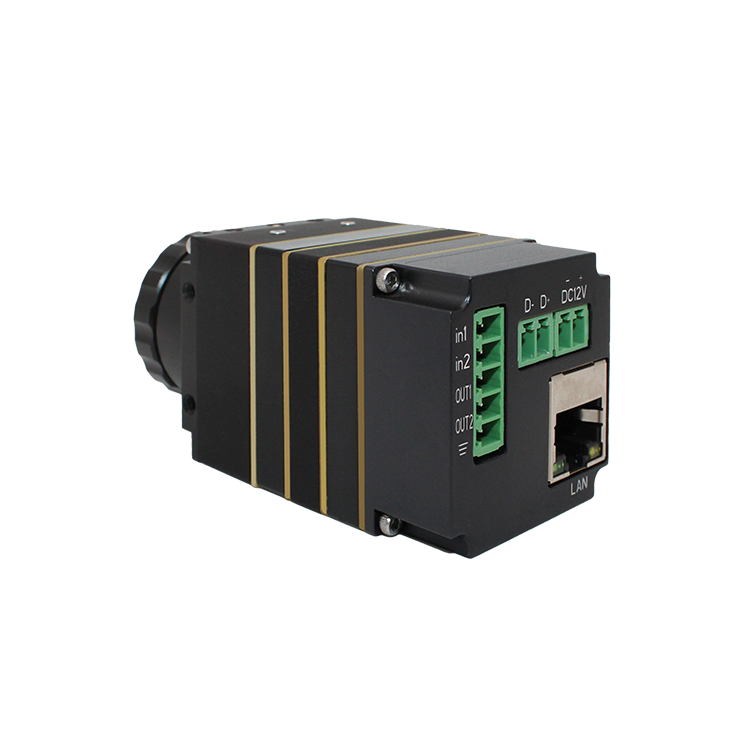

N23E8 在线式红外热成像测温仪采用 17μm 非制冷红外焦平面探测器、高性能红外镜头，性能优异的成像处理电路，并嵌入图像处理算法，具备体积小、功耗低、启动快速、成像质量优异、测温准确等特点。

N23E8 在线式红外热成像测温仪的器件选型充分考虑高低温工作性能的要求，保证整机工作有优异的环境适应性能。

N23E8 在线式红外热成像测温仪输出全码流无损温度数据和 H.264 压缩格式的视频流数据，提供 SDK 方便客户后端集成开发，充分对被测目标进行温度分析。

Functional Characteristics

Support a variety of protocols, which can be applied to a variety of platforms;
The temperature measurement is accurate, and a variety of temperature measurement ranges can be selected;
Provide rich SDK for integrated development;
Full pixel temperature measurement, through front-end processing, can superimpose and output high-temperature points, low-temperature points, central temperature and average temperature on the thermal imaging video, and can select multiple regional objects for local temperature measurement at the same time.

Application Field

Power Grid, Petroleum And Petrochemical, Rail Transit, Circuit Detection

Scientific Research, Security Monitoring, Machine Vision, Customized Development

系列详情 Specifications Common Problem

N系列详情

N23E8 Technical Parameter

IR Detector
Detector Type		Uncooled Focal Plane Microbolometer
Resolution		384×288
Pixel Size		17μm
Spectral Range		8～14μm
Thermal Sensitivity (NETD)		≤50mk@30℃
Frame Rate		25Hz
Image Processing And Display
Start-up Time		≤15S
Image Optimization		Support
Nonuniformity Correction		Support
Noise Reduction		Support
Digital Detail Enhancement		Support
Electronic Magnification		1.0 ~ 4.0 times stepless amplification
Polarity Control		Support
Palette		A variety of color palettes, including white heat, black heat, iron red, rainbow, etc
Network Video Compression Format		H.264
Gray Scale Range Adjustment		Automatic / Manual
Contrast And Brightness		Automatic / Manual
Image Mode		HDR wide dynamic mode
OSD		Support
Temperature Measurement Analysis
Temperature Measurement Accuracy		±2℃ or ±2%
Measuring Range		Normal Temperature Range: -20 ℃ ~ 200 ℃ Medium Temperature Range: 50 ℃ ~ 800 ℃ High Temperature Range: 50 ℃ ~ 1600 ℃
High Temperature Point Tracking		Support
Low Temperature Point Tracking		Support
Global High Temperature Point Display		Support
Global Low Temperature Point Display		Support
Center Point Temperature Display		Support
Average Temperature Display		Support
Custom Temperature Measurement Box		Support
SDK development kit
Operating Environment	Support WIN32、X64、LINUX
Video Mode	Support two channels: one video stream and one temperature stream
Electrical Characteristics
Data Interface		RJ45
Web Standard		100M network
Protocol Support		TCP/IP,HTTP,RTP,RTSP,ONVIF
Power Interface		2EDGKD-3.81mm/2P
Input Power Supply Voltage		7V～12VDC
Steady State Power Consumption		<3.5W
Reverse Connection Protection		Have
Overvoltage And Undervoltage Protection		Have
Communication Standard		UART@RS485 (anti control platform and camera)
Environmental Parameters
Operation Temperature		-40℃～60℃
Storage Temperature		-45℃～70℃
Resistance To Temperature Shock		5℃/min(-40℃～60℃)
Vibration Resistance		4.3g, 2 hours for each axis of x, y and z axes
Shock Resistance		Acceleration 30g, Half Sine Wave, Pulse Width 6ms, Impact 3 Times In The Direction Of Installation And Use
Humidity		≤ 95% (non condensing)
Camera Lens
Focal Length		8mm(F#1.0)
Focus Mode		Manual
Field Of View		44.4°×34.1°(horizontal field angle × Vertical field angle)
Spatial Resolution		2.125mrad
Physical Characteristics
Overall Dimension		40.0mm×40.0mm×81.6mm
Weight		<177g
Mounting Hole		Two M3×4 around

Failed to add CAMERA IP address

Possible causes:

The computer firewall blocks network transmission (turn off the firewall, or add the software to the firewall white list)
The computer local IP is not in the same network segment as the camera IP (modify the computer local link IP address, which is in the same network segment as the camera, and is not the same as the camera

The software detects the IP address of the camera, but there is no image output or image jam

Possible causes:

The computer configuration is too low (it is recommended to use more than 9 generation CPUs of i7 or more than 10 generation CPUs of i5)
Camera failure (return to factory for maintenance)

Large temperature measurement deviation

Possible causes:

The use environment is beyond the scope of product use (use appropriate cooling measures)
Temperature section mismatch (select the appropriate temperature section for temperature measurement)

The image flickers or there is a splash screen phenomenon

Possible causes:

The power supply voltage or power does not meet the requirements of the camera (replace the power supply)
Camera hardware failure (return to factory for maintenance)
