BS2Z25KN Single Light Explosion-proof Online Temperature Measurement And Monitoring Systemsystem

2021/04/27 Product Center Metallurgy Power Grid 2819

Product Profile

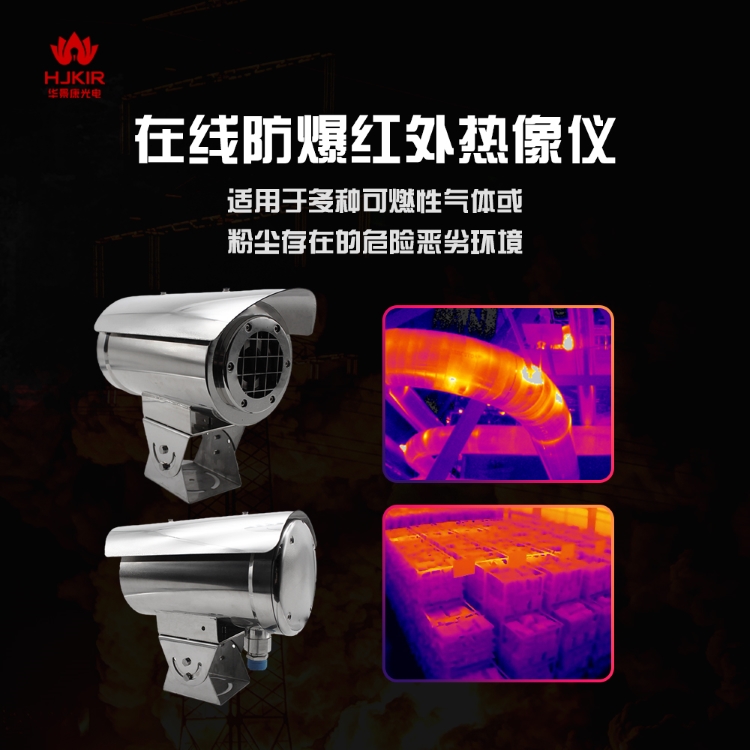

BS2Z25KN series (single light explosion-proof) on-line temperature measurement and monitoring system is an on-line temperature measurement infrared thermal imager with high performance and high accuracy. The product adopts imported detectors, which have stable operation and superior performance, combined with unique temperature measurement correction algorithm and easy-to-use user interface. series (single light explosion-proof) on-line temperature measurement and monitoring system is an on-line temperature measurement infrared thermal imager with high performance and high accuracy. The product adopts imported detectors, which have stable operation and superior performance, combined with unique temperature measurement correction algorithm and easy-to-use user interface.

Functional Characteristics

304 stainless steel, corrosion resistant;
The built-in infrared thermal imaging thermometer has accurate temperature measurement and clear image, and supports compressed video stream and original code stream output;
Stable operation, adapt to harsh environment, automatic warning;
Have all kinds of alarm, safety and equipment operation status records;
System software is provided to facilitate system integration;
Complete and rich SDK development packages support users' rapid secondary development.

Scope Of Application

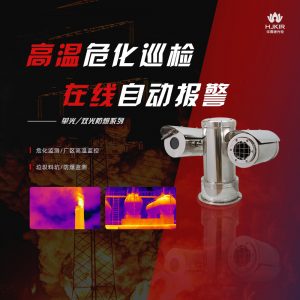

Hazardous Chemicals Monitoring, Plant High Temperature Monitoring, Smoke Detection, Garbage Pit Temperature Monitoring

Specifications Common Problem

BS2Z25KN (Single Light Explosion-proof) Technical Parameters

Infrared Movement Index
Detector Type	Uncooled Focal Plane Microbolometer
Pixel	384×288/640×480
Pixel Size	17μm
Spectral Range	8~14μm
Thermal Sensitivity	≤50mk@30℃
Frame Rate	25/50Hz
Focal Length	Non heating 8mm, 13mm, 19mm, 25mm, 35mm optional
Measuring Range	-20℃～200℃/50℃～800℃/50℃～1600℃
Temperature Measurement Accuracy	±2℃ or ±2%
Pan Tilt Shield
Shield Protection	explosion-proof
Explosion Proof Grade	Ex d IIC T6 Gb/Ex tD A20 IP68 T80℃
Function
Palette	A variety of color palettes, including white heat, black heat, iron red, rainbow, etc
Other	With nonuniformity correction function, automatic correction when powered on
Client Software	Neutral client software is provided, through which various functional parameters of the thermal imager can be set remotely, such as palette, alarm threshold and image parameter configuration.
Protocol Support
Protocol Support	TCP/IP,HTTP,RTP,RTSP,NTP,UPnP,ONVIF,UDP
Environmental Requirements
Operation Temperature	-40℃～60℃
Storage Temperature	-45℃～70℃
Resistance To Temperature Shock	5℃/min(-40℃～60℃)
Physical Characteristics And Others
Power Supply	AC220V
Power Dissipation	≤100W
Communication Interface	RJ45/RS485

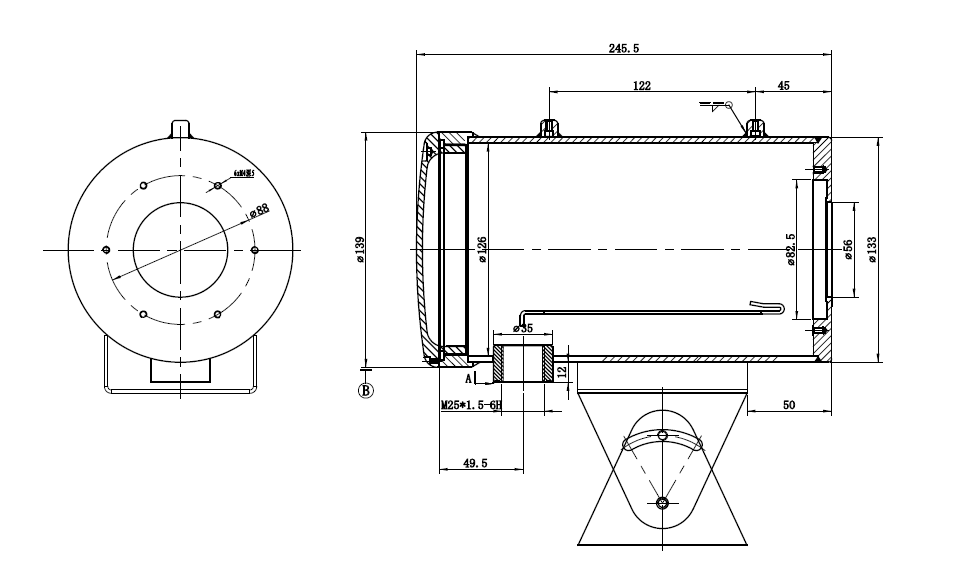

Overall Dimension	245.5mm×139mm×241mm（L×W×H）
Weight	≤25kg

Abnormal operation of upper computer

Possible causes:

The necessary runtime library (EXE or credist_vs2013.x86.exe under the installation software directory) is missing
The software does not support the operating system used (replace the operating system or computer)

The software cannot detect the camera IP address

Possible causes:

The computer firewall blocks network transmission (turn off the firewall, or add the software to the firewall white list)

The software detects the IP address of the camera, but there is no image output or image jam

Possible causes:

Insufficient bandwidth (check whether the camera network card is gigabit network. It is recommended to use gigabit network. The 100m network camera will automatically reduce the frame rate)
Network card configuration problem (for 100Hz or 200Hz high frame rate cameras, you need to turn on the giant frame function of the network card)
The computer local IP is not in the same network segment as the camera IP (modify the computer local link IP address, which is in the same network segment as the camera, and is not the same as the camera
The software does not support the operating system used (replace the operating system or computer)

Large temperature measurement deviation

Possible causes:

The use environment is beyond the scope of product use (use appropriate cooling measures)
Temperature section mismatch (select the appropriate temperature section for temperature measurement)

The image flickers or there is a splash screen phenomenon

Possible causes:

The power supply voltage or power does not meet the requirements of the camera (replace the power supply)
Camera hardware failure (return to factory for maintenance)
