SFL36KN online single spectrum infrared thermal imaging temperature measurement system

2022/01/11 Product Center Metallurgy 2249

Product Profile

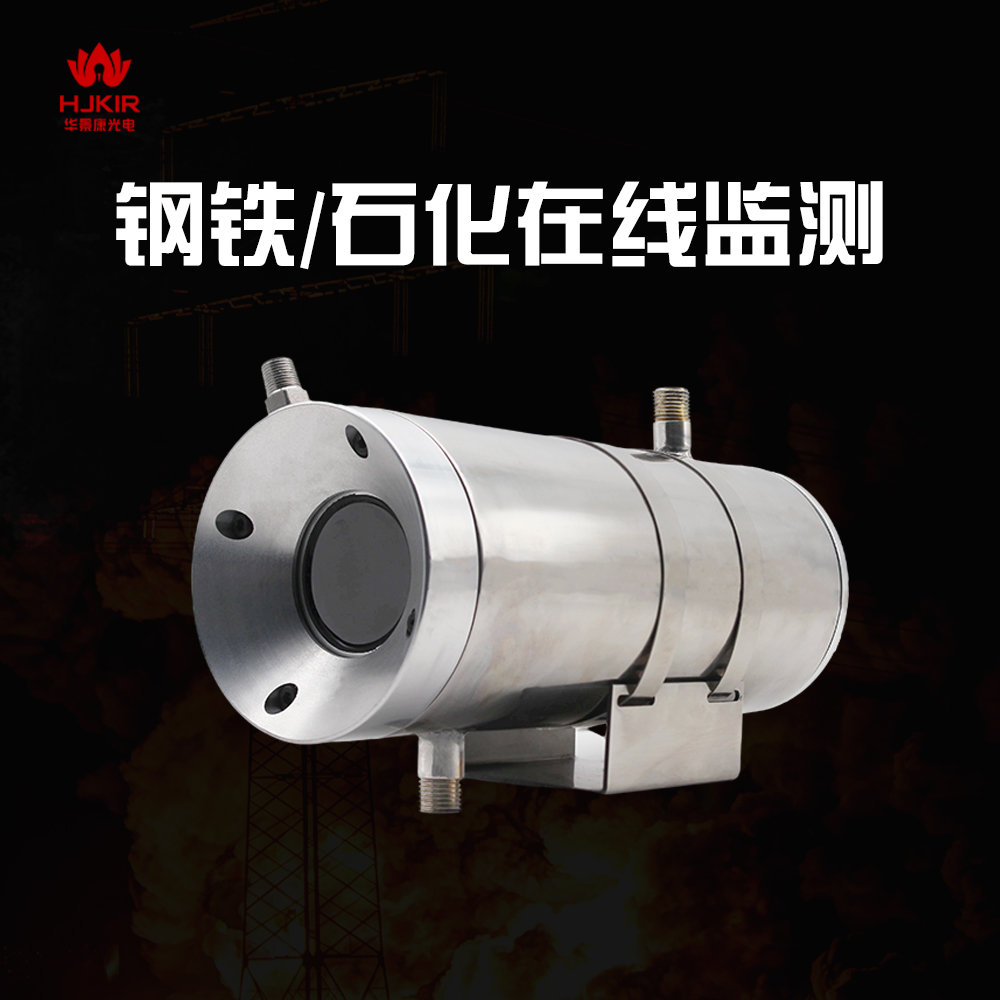

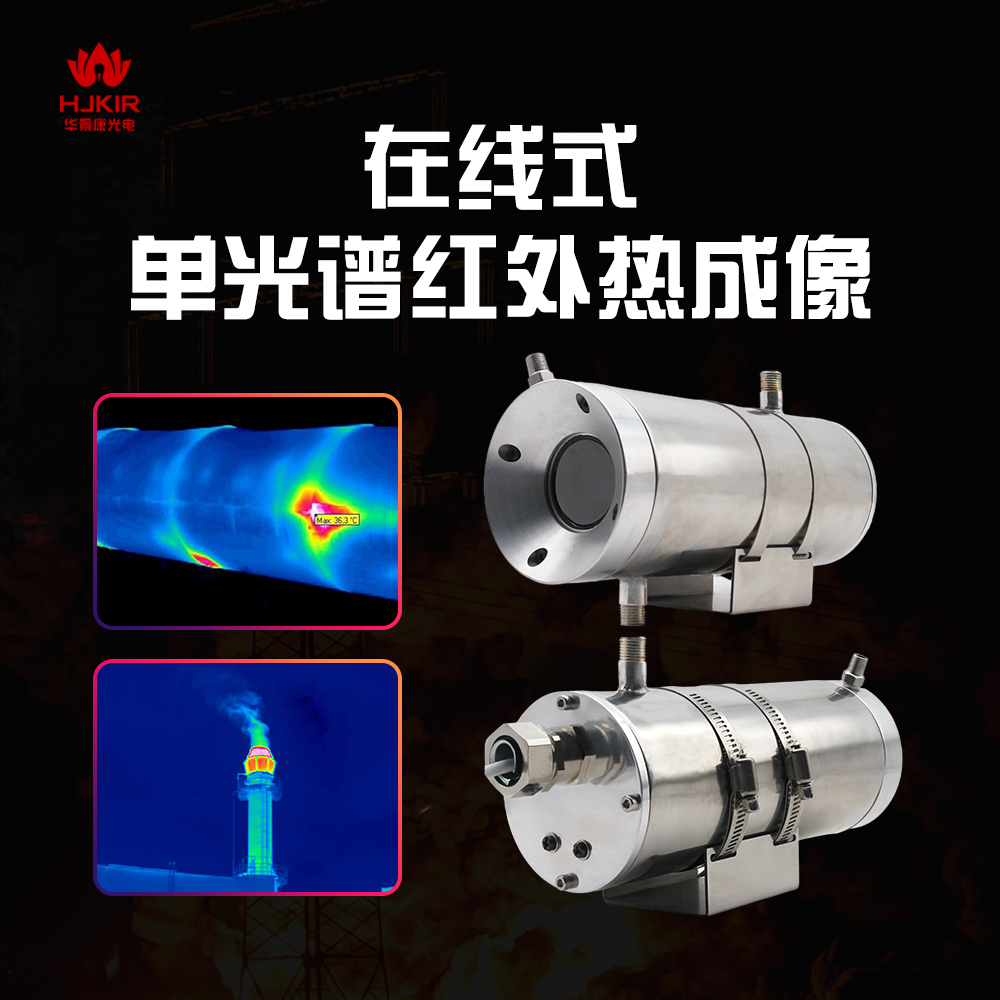

SFL36KN on-line single spectrum infrared thermal imaging temperature measurement system (water and air cooling) is an integrated on-line temperature measurement monitoring equipment, which is composed of tripod or PTZ, 17 μm uncooled infrared thermal imager. Embedded with advanced image processing algorithm, it has the characteristics of low power consumption, fast startup, excellent imaging quality, accurate temperature measurement and so on.

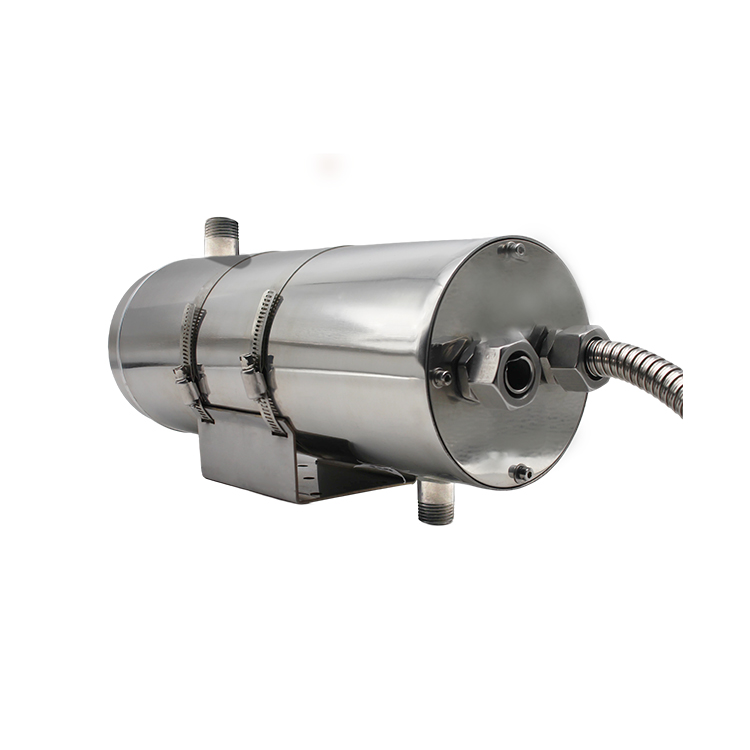

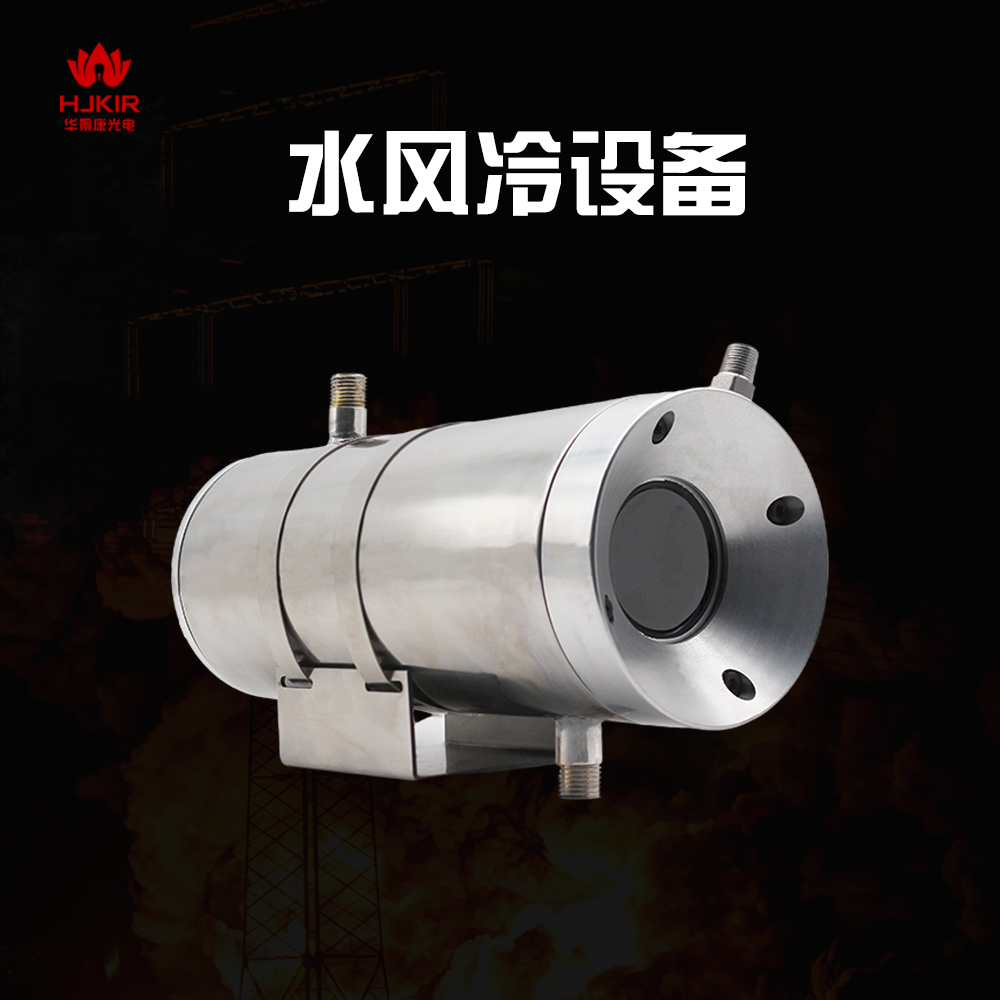

The device selection of sfl36kn on-line single spectrum infrared thermal imaging temperature measurement system fully considers the requirements of high and low temperature working performance. The water and air cooling adopts the simultaneous circulation of air and water to dissipate heat, so as to ensure the excellent environmental adaptability of the whole machine.

Functional Characteristics

It has all-weather passive thermal imaging function, has strong smoke penetration performance, and can be used in a wide range of ambient temperatures;
With high frame rate design, fast-moving targets can be observed;
Adopt self-developed temperature measurement correction algorithm to realize accurate temperature measurement;
单网线即可完成红外数据传输，监控、测温同时进行，主要应用于钢铁、高炉在线监测等。

Specifications Common Problem

SFL36KN Technical Parameter

Applicable Movement
Focal Length	8、9.6、13、19、25、35mm(F#1.0)
Resolution	384×288/640×480
Movement Name	K series /N series
Imaging Range	0.3m～∞
Pixel Size	17μm
Spectral Range	8～14μm
NETD	≤50mk@30℃
Frame Rate	≤ 50Hz (configurable)
Image Processing And Display
Start-up Time	≤15S
Palette	A variety of color palettes, including white heat, black heat, iron red, rainbow, etc
Data Format	16bit Temperature Data (full Code Stream)
Temperature Measurement Analysis
Measuring Range	Normal Temperature Range: -20 ℃ ~ 200 ℃ Medium Temperature Range: 50 ℃ ~ 800 ℃ High Temperature Range: 50 ℃ ~ 1600 ℃
Temperature Measurement Accuracy	±2℃ or ±2%
Electrical Characteristics
Data Interface	RJ45
Web Standard	100M Network / Gigabit Network (100M network needs to reduce the frame rate)
Protocol Support	UDP
Power Interface	2EDGKD-3.81mm/2P
Input Power Supply Voltage	5V～12VDC
Communication Interface	UART@RS485 (anti control platform and camera)
Steady State Power Consumption	<2.2W
Reverse Connection Protection	Have
Overvoltage And Undervoltage Protection	Have
Environmental Parameters
Operation Temperature	0℃～60℃(Temperature measurement accuracy can be guaranteed within the range of 15 ℃ ~ 35 ℃)
Storage Temperature	-45℃～70℃
Resistance To Temperature Shock	5℃/min（-40℃～60℃）
Vibration Resistance	4.3g, 2 hours for each axis of x, y and z axes
Shock Resistance	Acceleration 30g, Half Sine Wave, Pulse Width 6ms, Impact 3 Times In The Direction Of Installation And Use
Humidity	≤ 95% (non condensing)
Camera Lens
Focal Length	8、9.6、13、19、25、35mm(F#1.0)
Clear Imaging Range	0.3m～∞
Physical Characteristics
Overall Dimension	ø120mm×334mm
Weight	8Kg
Mounting Hole	4- ø 10 through hole
Cooling System
Working Ambient Temperature	-25℃~+600℃（Air cooled medium, which can withstand 150 ℃ ambient temperature; Water cooling medium, which can withstand 600 ℃ ambient temperature)
Cooling Water Temperature	≤35℃
Cooling Water Pressure	0.1~0.4Mpa
IP degree of protection	Meet IP66 standard
Compressed Air Temperature	≤35℃
Compressed Air Pressure	0.1Mpa-0.8Mpa
Air Purging Function	The front-end lens protective germanium sheet is equipped with an air curtain to support the air purging function and prevent dust from adhering to the lens surface
Client
Real Time Temperature Display	Support
Multiple Temperature Measuring Objects	Support
Manual Warm Window Stretching	Support
Photography And Analysis	Support
Generate Report	Support
Dictionary Entry Of Common Words	Support
Unit / User / Member Management	Support
SDK development kit
Operating Environment	Support win32、x64、Linux(x86、ARM)

Abnormal operation of upper computer

Possible causes:

The necessary runtime library (EXE or credist_vs2013.x86.exe under the installation software directory) is missing
The software does not support the operating system used (replace the operating system or computer)

The software cannot detect the camera IP address

Possible causes:

The computer firewall blocks network transmission (turn off the firewall, or add the software to the firewall white list)

The software detects the IP address of the camera, but there is no image output or image jam

Possible causes:

Insufficient bandwidth (check whether the camera network card is gigabit network. It is recommended to use gigabit network. The 100m network camera will automatically reduce the frame rate)
Network card configuration problem (for 100Hz or 200Hz high frame rate cameras, you need to turn on the giant frame function of the network card)
The computer local IP is not in the same network segment as the camera IP (modify the computer local link IP address, which is in the same network segment as the camera, and is not the same as the camera
The software does not support the operating system used (replace the operating system or computer)

Large temperature measurement deviation

Possible causes:

The use environment is beyond the scope of product use (use appropriate cooling measures)
Temperature section mismatch (select the appropriate temperature section for temperature measurement)

The image flickers or there is a splash screen phenomenon

Possible causes:

The power supply voltage or power does not meet the requirements of the camera (replace the power supply)
Camera hardware failure (return to factory for maintenance)
