K12E2在线式红外热成像测温仪

2023/05/25 Product Center Machine Vision Power Grid Scientific Research 931

Product Profile

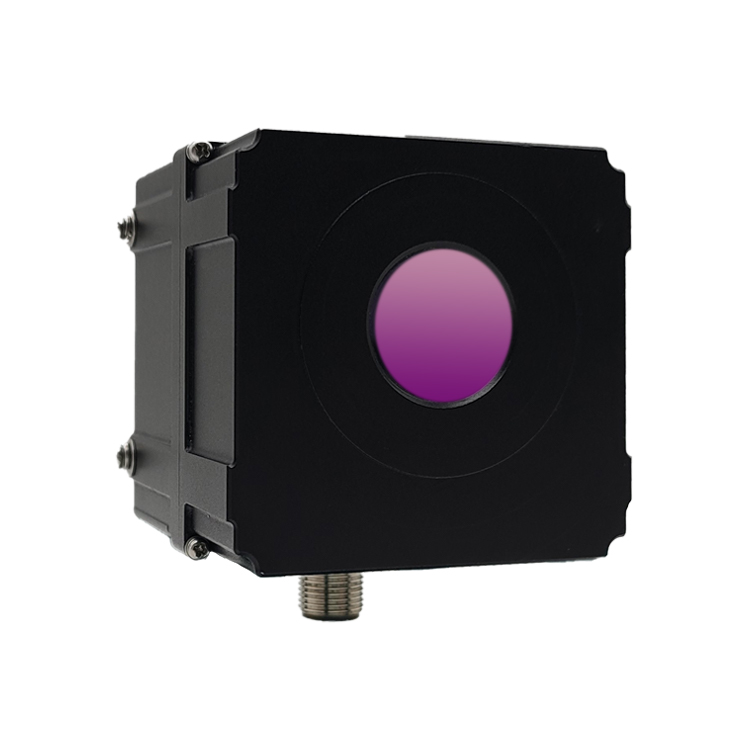

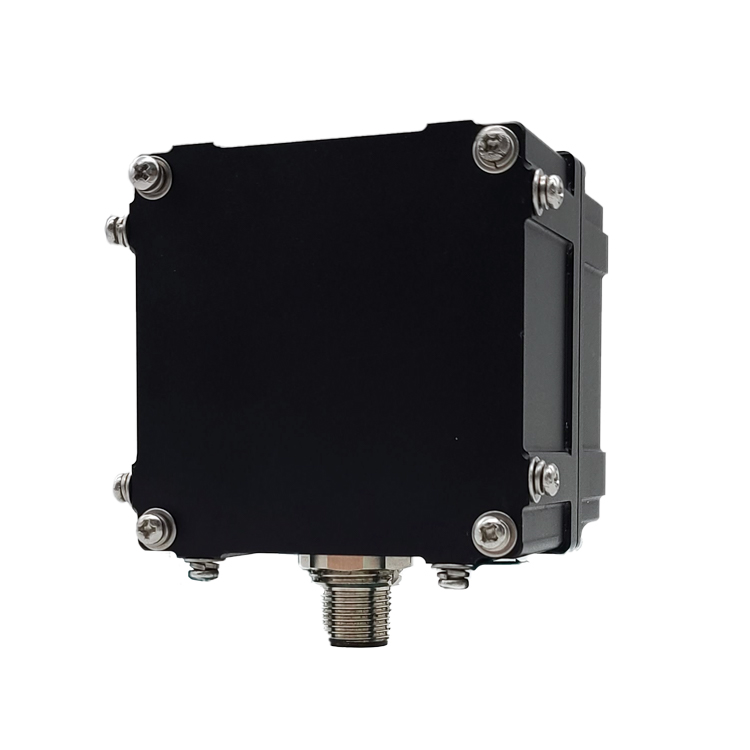

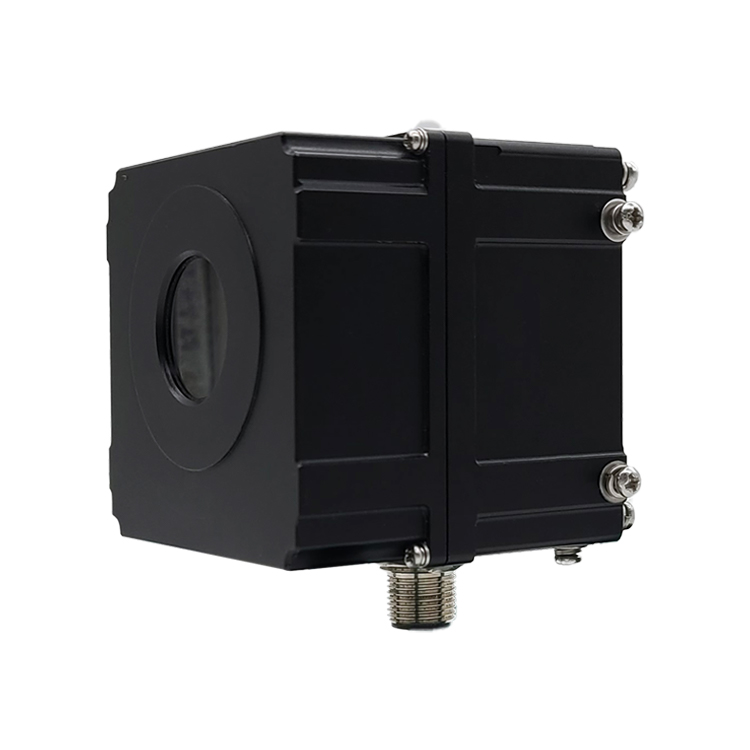

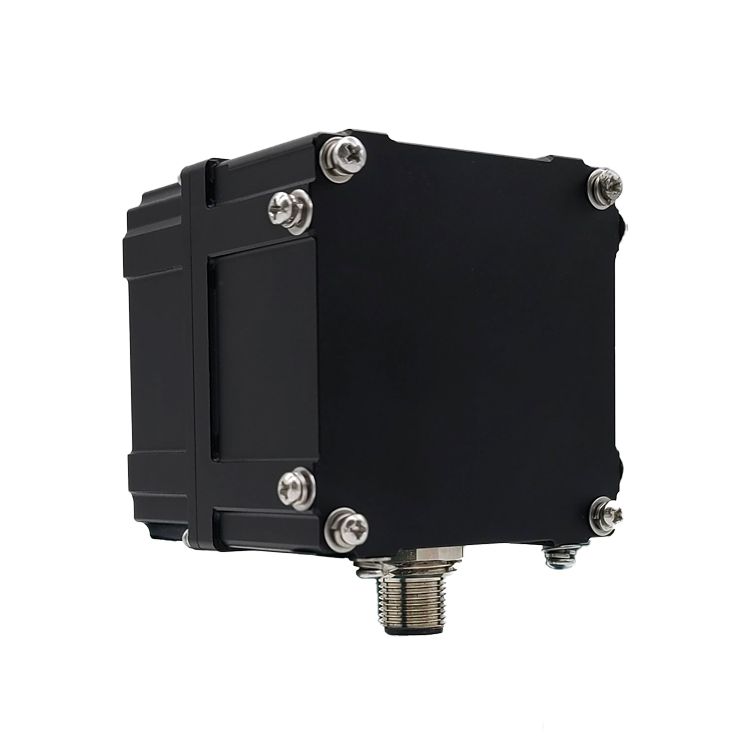

K12E2在线式红外热成像测温仪采用12μm非制冷红外焦平面探测器、高性能红外镜头和信号处理电路，并嵌入先进的图像处理算法，具备体积小、功耗低、启动快速、成像质量优异、测温精准等特点。

K12E2在线式红外热成像测温仪的器件选型充分考虑高低温工作性能的要求，保证整机工作有优异的环境适应性能。

PRODUCTS特性

It has all-weather passive thermal imaging function, has strong smoke penetration performance, and can be used in a wide range of ambient temperatures;
调试集成化，体积小，便于集成；
Adopt self-developed temperature measurement correction algorithm to realize accurate temperature measurement;
The full stream lossless 16bit temperature data is output, and the client software and SDK development kit are provided to facilitate the secondary development and system integration of customers, and fully carry out personalized temperature analysis of the tested target.

Application Field

酒品酿造机器视觉电力电网定制开发

Specifications Common Problem

K12E2技术参数

IR Detector
Detector Type	Uncooled Focal Plane Microbolometer
Resolution	256×192
Pixel Size	12μm
Spectral Range	8～14μm
NETD	≤50mk@25℃
Frame Rate	25Hz
Image Processing And Display
成像时间	≤15S
Palette	A variety of color palettes, including white heat, black heat, iron red, rainbow, etc
Contrast And Brightness	Automatic / Manual
Data Format	16bit Temperature Data (full Code Stream)
Temperature Measurement Analysis
Temperature Measurement Accuracy	±2℃ or ±2%
Measuring Range	常温档：-15℃～150℃、中温档：50℃～550℃
Electrical Characteristics
Web Standard	百兆网/千兆网
Protocol Support	UDP
Input Power Supply Voltage	5V～12VDC
Communication Interface	UART@RS485 (anti control platform and camera)

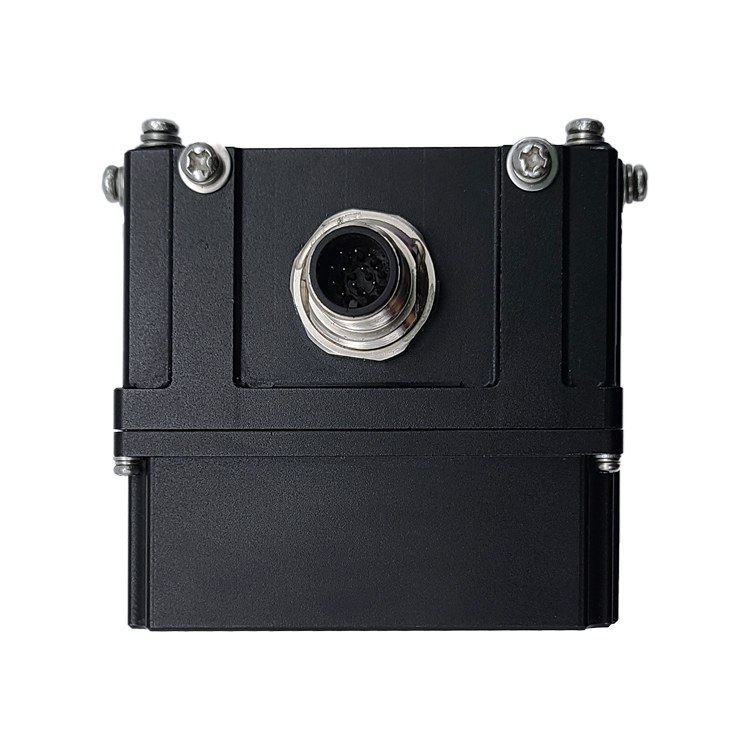

Data Interface	M12航空插头（含电源、网络及RS485接口）
Steady State Power Consumption	<2W
Reverse Connection Protection	Have
Overvoltage And Undervoltage Protection	Have
Environmental Parameters
Operation Temperature	-40℃～60℃（-10℃～60℃保证测温精度）
Storage Temperature	-45℃～70℃
Resistance To Temperature Shock	5℃/min（-40℃～60℃）
Vibration Resistance	4.3g, 2 hours for each axis of x, y and z axes
Shock Resistance	Acceleration 30g, Half Sine Wave, Pulse Width 6ms, Impact 3 Times In The Direction Of Installation And Use
Humidity	≤ 95% (non condensing)
Camera Lens
Focal Length	2.0mm(F#1.1)
Focus Mode	Manual
Field Of View	90°×65°（水平视场角×垂直视场角）
Spatial Resolution	6mrad
Physical Characteristics

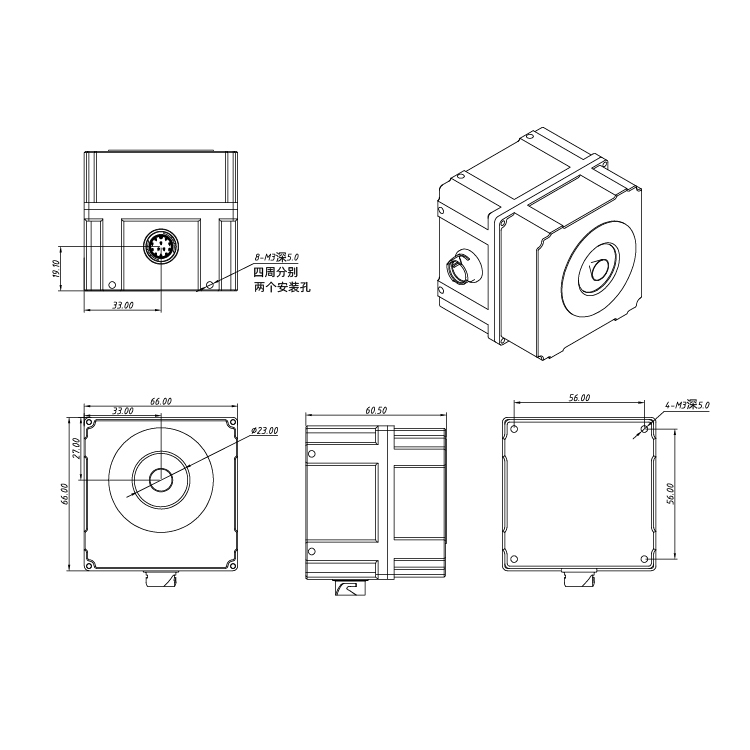

Overall Dimension	66mm×66mm×60.5mm
防水等级	IP67
Weight	<310g
Mounting Hole	Two M3×4 on the bottom of each side
Client
Real Time Temperature Display	Support
Multiple Temperature Measuring Objects	Support
Alarm Analysis	Support
Video Recording / Photographing / Playback	Support
SDK development kit
Operating Environment	支持win32、x64、Linux(x86/ARM)
