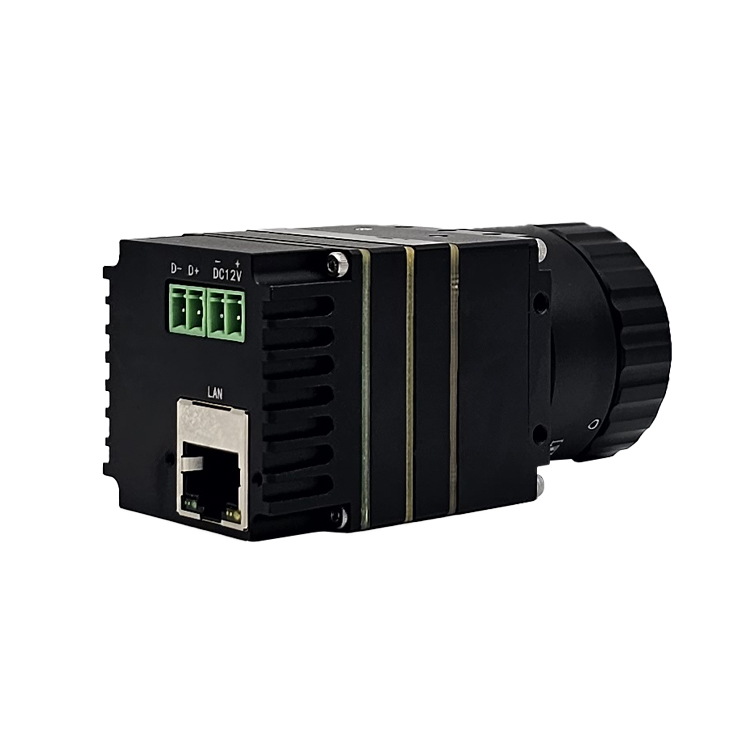

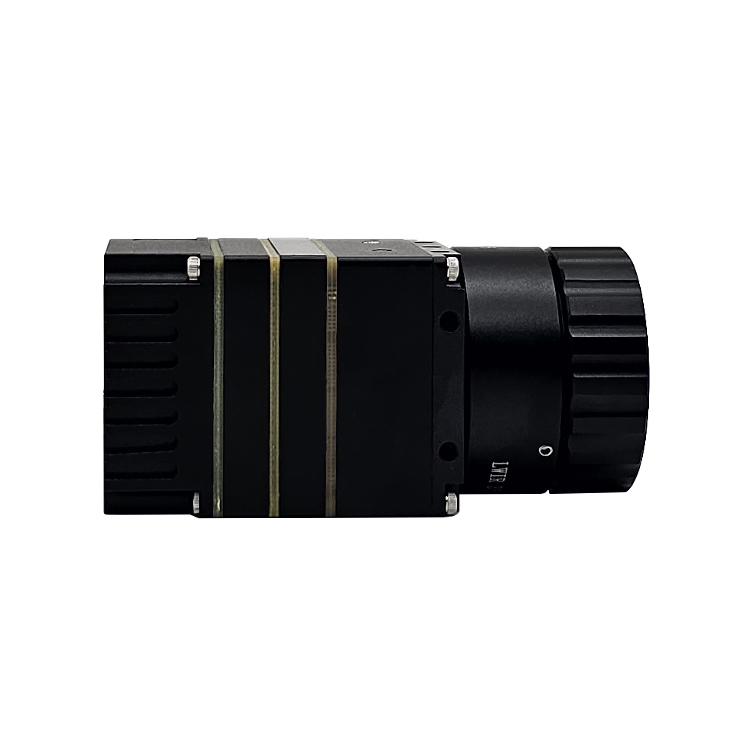

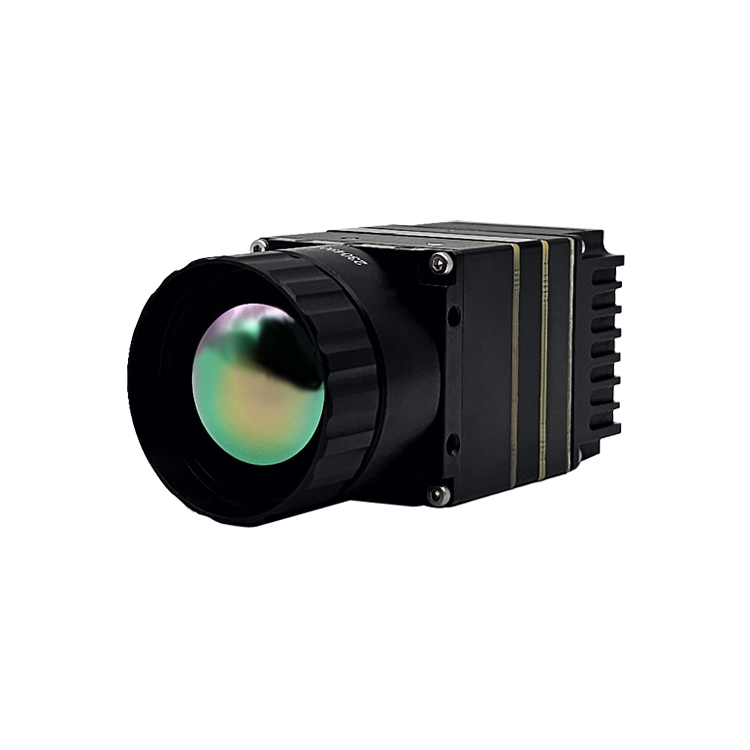

K46E35在线式红外热像仪

2023/09/04 Product Center Metallurgy Power Grid Scientific Research 1065

Product Profile

K46E35在线式红外热像仪采用12μm非制冷红外焦平面探测器、高性能红外镜头和信号处理电路，并嵌入图像处理算法，具备体积小、功耗低、启动快速、成像质量优异、测温准确等特点。

K46E35在线式红外热像仪的器件选型充分考虑高低温工作性能的要求，保证整机工作有优异的环境适应性能。

Functional Characteristics

1. It has all-weather passive thermal imaging function, has strong smoke penetration performance, and can be used in a wide range of ambient temperatures;

2. With high frame rate design, fast-moving objects can be observed

3、采用自研测温校正算法，实现准确温度测量；

4. The full stream lossless 16bit temperature data is output, and the client software and SDK development kit are provided to facilitate the secondary development and system integration of customers, and fully carry out personalized temperature analysis of the tested target.

Application Field

Power Grid, Petroleum And Petrochemical, Rail Transit, Circuit Detection

Scientific Research, Security Monitoring, Machine Vision, Customized Development

系列详情 Specifications Common Problem

IR Detector
Detector Type	Uncooled Focal Plane Microbolometer
Resolution	640×512
Pixel Size	12μm
Spectral Range	8～14μm
NETD	≤50mk@30℃
Frame Rate	≤ 50Hz (configurable)
Image Processing And Display
成像时间	≤15S
Palette	A variety of color palettes, including white heat, black heat, iron red, rainbow, etc
Data Format	16bit Temperature Data (full Code Stream)
Temperature Measurement Analysis
Temperature Measurement Accuracy	±2℃ or ±2%
Measuring Range	常温档：-20℃～200℃、中温档：50℃～800℃、高温档：50℃～1600℃
Electrical Characteristics
Data Interface	RJ45
Web Standard	100M Network / Gigabit Network (100M network needs to reduce the frame rate)
Protocol Support	UDP
Power Interface	2EDGKD-3.81mm/2P
Input Power Supply Voltage	5V～12VDC
Communication Interface	UART@RS485 (anti control platform and camera)
Steady State Power Consumption	<2.2W
Reverse Connection Protection	Have
Overvoltage And Undervoltage Protection	Have
Environmental Parameters
Operation Temperature	-40 ℃ ~ 60 ℃ (-20 ℃ ~ 60 ℃ to ensure temperature measurement accuracy
Storage Temperature	-45℃～70℃
Resistance To Temperature Shock	5℃/min（-40℃～60℃）
Vibration Resistance	4.3g, 2 hours for each axis of x, y and z axes
Shock Resistance	Acceleration 30g, Half Sine Wave, Pulse Width 6ms, Impact 3 Times In The Direction Of Installation And Use
Humidity	≤ 95% (non condensing)
Camera Lens
Focal Length	35mm(F#1.0)
Focus Mode	Manual
Field Of View	12.5°×10.0°（水平视场角×垂直视场角）
Spatial Resolution	0.343mrad
Physical Characteristics
Overall Dimension	40mm×40mm×83.2mm
Weight	<180g
Mounting Hole	Two M3×4 at the bottom and eight M2×4 on both sides
Client
Real Time Temperature Display	Support
Multiple Temperature Measuring Objects	Support
Manual Warm Window Stretching	Support
Video Recording / Photographing / Playback	Support
SDK development kit
Operating Environment	支持win32、x64、Linux(x86/ARM)
