| IR Detector |
| Detector Type | Uncooled Focal Plane Microbolometer |
| Resolution | 640×480 |
| Pixel Size | 17μm |
| Spectral Range | 8～14μm |
| NETD | ≤50mk@30℃ |
| Frame Rate | ≤ 50Hz (configurable) |
| Image Processing And Display |
| 成像时间 | ≤15S |
| Palette | A variety of color palettes, including white heat, black heat, iron red, rainbow, etc |
| Contrast And Brightness | Automatic / Manual |
| Image Mode | 全码流无损16Bit温度数据 |
| Temperature Measurement Analysis |
| Temperature Measurement Accuracy | ±2℃ or ±2% |
| Measuring Range | -20℃～+200℃ |
| Electrical Characteristics |

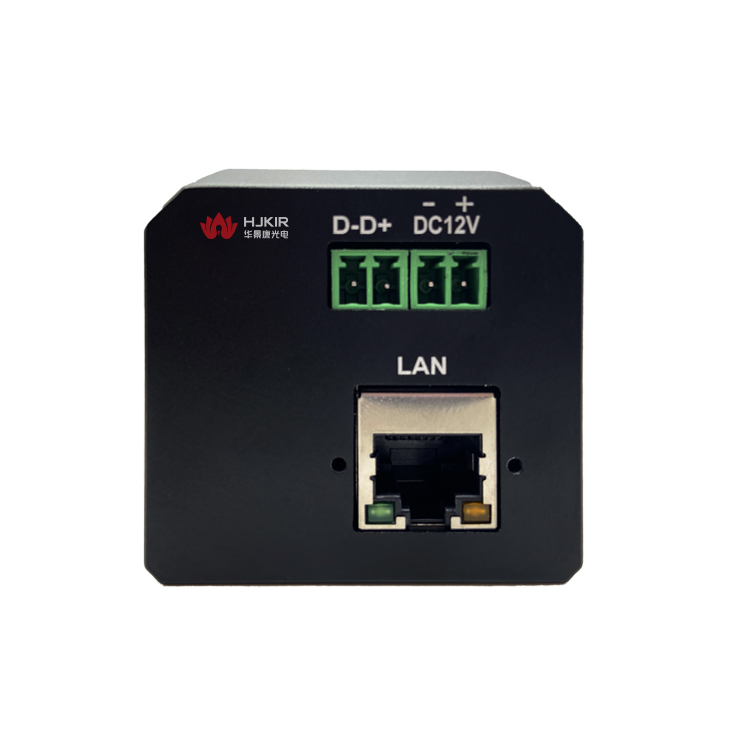

| Data Interface | RJ45 |
| Web Standard | 100M Network / Gigabit Network (100M network needs to reduce the frame rate) |
| Protocol Support | UDP |
| Power Interface | 2EDGKD-3.81mm/2P |
| Input Power Supply Voltage | 5～12VDC |
| Communication Interface | UART@RS485 (anti control platform and camera) |
| Steady State Power Consumption | <3W |
| Reverse Connection Protection | Have |
| Overvoltage And Undervoltage Protection | Have |
| Environmental Parameters |
| Operation Temperature | -40℃～+60℃（-20℃～+60℃保证测温精度） |
| Storage Temperature | -45℃～+70℃ |
| Resistance To Temperature Shock | 5℃/min（-40℃～+60℃） |
| Vibration Resistance | 4.3g, 2 hours for each axis of x, y and z axes |
| Shock Resistance | Acceleration 30g, Half Sine Wave, Pulse Width 6ms, Impact 3 Times In The Direction Of Installation And Use |
| Humidity | ≤ 95% (non condensing) |

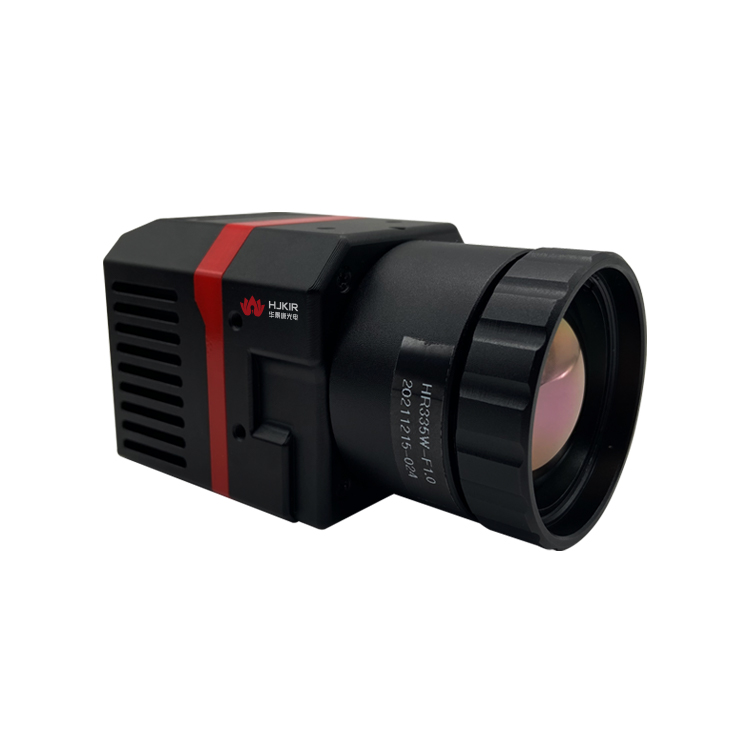

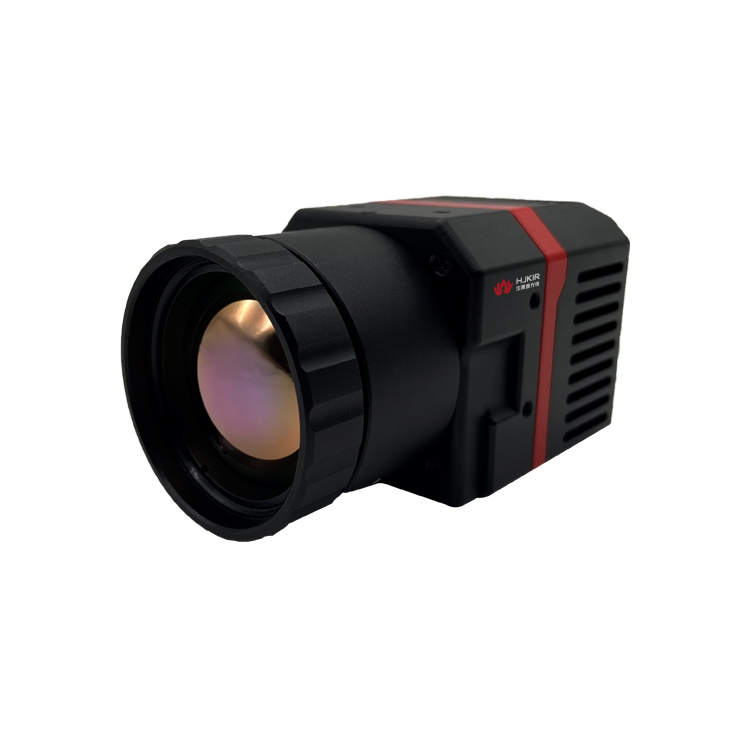

| Camera Lens |
| Focal Length | 35mm(F#1.0) |
| Focus Mode | Manual |
| Field Of View | 17.7°×13.3°（水平视场角×垂直视场角） |
| Spatial Resolution | 0.49mrad |
| Physical Characteristics |
| Overall Dimension | 50mm×50mm×89.3mm |
| Weight | <240g |
| Mounting Hole | Two M3×4 each around |
| Client |
| Real Time Temperature Display | Support |
| Multiple Temperature Measuring Objects | Support |
| Caution Function | Support |
| Video Recording / Photographing / Playback | Support |
| SDK development kit |
| Operating Environment | 支持win32、x64、Linux(x86/ARM) |
